3-lead and 5-lead ECG cables — monitoring leadwire sets
Configurations3 · 5 · 6-lead
Patient endsSnap · grabber
ColoursAHA + IEC
UseMonitoring
The leadwire set is the wear part of ECG monitoring: it is plugged and unplugged daily, dragged across beds and floors, and cleaned constantly. This range covers the monitoring configurations ordered as '3 lead ECG cable' and '5 lead ECG cable' — 3-lead sets for basic rhythm monitoring, 5-lead sets for multi-lead surveillance and ST trending, and 6-lead variants where the platform supports them — with snap or grabber patient ends and both AHA and IEC colour conventions, per monitor platform.
Sets are keyed to their trunk or monitor socket pattern; two sets that look identical can terminate differently at the yoke. Every set here is therefore listed against the platform and trunk family it mates with, and the same set families repeat across Philips, GE, Mindray, Nihon Kohden and Edan monitors so a mixed fleet can still standardise purchasing.
Snap or grabber?
Snap ends pair with adhesive electrodes and dominate monitoring: fast, secure, and the electrode carries the skin interface. Grabber (clip) ends grip stud electrodes and appear more in diagnostic and stress contexts. Sets are not freely convertible — the patient end is moulded — so order the end your electrodes use. Within a configuration, lead length is the second variable: standard lengths suit bedside monitors; longer sets serve telemetry and transport.

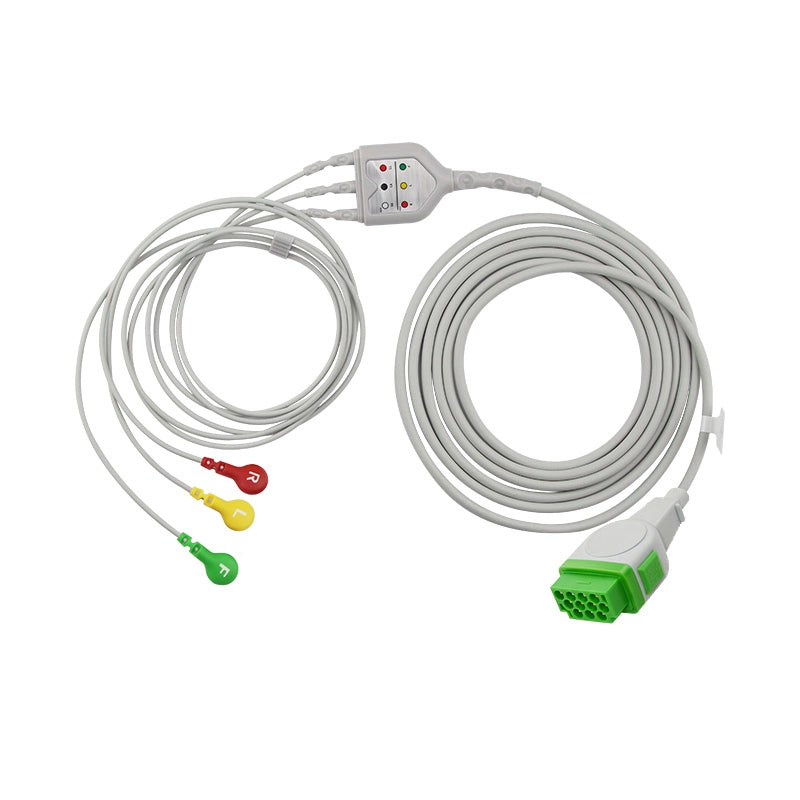

- 3-lead sets — rhythm monitoring, telemetry
- 5-lead sets — standard ICU/ward monitoring, AHA or IEC
- 6-lead sets — platform-specific extended monitoring
Colour conventions: pick one and hold it
AHA (white/red/brown/black/orange family) and IEC (red/yellow/green/black family) sets place identical signals under different colours. Both are stocked across the range; the safety-relevant act is consistency inside a department, because placement by colour memory is how limb-lead reversals happen. State your convention on the order — it is a line item, not an assumption.
Representative products from the current catalogue
| Product (official store listing) | Key specifications |
|---|---|
| 12 Lead ECG Trunk Cable GE Marquette Compatible 2106308-001 | AMC: CB-5110006；GE Healthcare > Marquette: 2017006-001 (12 ft), 416035-001, 416035-003, 2106308-001 (12 ft), 2017006-002 (4 ft), 2106308-002 (4 ft)；Sage: T02-12-30M；Datex Ohmeda: E-PRESTN, M-PRESTN；GE Healthcare > Critikon > Dinamap: CARESC |
| 2017003-001 ECG Trunk Cable GE Marquette Compatible 3/5 Lead-IEC | AMC: CB-515006 (10 ft Cable)；Curbell: CBT-05ND-10CM-0001；GE Healthcare > Marquette: 2017003-001 (12 ft), 2017003-002 (4 ft), 2022948-002, 412931-001, E9002ZB, 164L0025, 2106305-001 (12 ft), 2106305-002 (4 ft), 2106311-001 (20 ft)；GE Healthc |
| 2104723-001 GE HealthCare ECG Trunk Cable Compatible With 10 Leads-22341809 | GE Healthcare > Marquette: 22341809, 2104723-001；Sage: T02-10-25M；Tenacore: 45509-B；Category: EKG；Monitor End Connector: DB-15 Connector；Total Cable Length: 7.2ft (2.2m)；Cable Material: TPU Jacket；Lead Color Coding: AHA/IEC；Lead Cable Color |
| 3 lead ECG cable 6PIN AAMI Compatible with pinch Grabber 1KΩ Resistance | AMC: CB-72320R-P；Welch Allyn: 9293-050-50；Analogic: Lifegard II；Mortara: Surveyor S12/S19；Spacelabs: 90308, 90470, PCMS, Series 500, TEK-511, TEK-512, TEK-514, TEK-5214045；Zoll: Propaq MD, X Series；Category: ECG；Monitor End Connector: Round |
| 3 lead ECG cable 6PIN AAMI Compatible with pinch Grabber without Resistance | Curbell: CB-72540R, CB-72540R；Analogic: Lifegard II；Category: ECG；Monitor End Connector: Round, 6-pin Connector；Total Cable Length: 12ft (3.6m)；Cable Material: TPU Jacket；Cable Diameter: 5.0mm and 2.6mm；Lead Color Coding: AHA；Lead Cable Col |
| 3 lead ECG cable 6PIN AAMI Compatible with pinch Snap 1KΩ Resistance | AMC: CB-72320R (10 ft)；Curbell: CB-72340R；RPI: KCB002；Sage: A11-03S；Welch Allyn: 008-0315-00；Analogic: Lifegard II；Mortara: Surveyor S12/S19；Spacelabs: 90308, 90470, PCMS, Series 500, TEK-511, TEK-512, TEK-514, TEK-5214045；Zoll: Propaq MD, |
| 3 lead ECG cable 6PIN AAMI Compatible with pinch Snap without Resistance | Siemens: 11147443, 51009, 8253040；Category: ECG；Monitor End Connector: Round, 6-pin Connector；Total Cable Length: 12ft (3.6m)；Cable Material: TPU Jacket；Cable Diameter: 5.0mm and 2.6mm；Lead Color Coding: AHA；Lead Cable Color: Gray；Packaging |
| 3 lead ECG cable Nihon Kohden Compatible with pinch Grabber | Nihon Kohden: AY-651P, BSM 2354A, BSM-2300 Life Scope I, BSM-2301A, BSM-2301K, BSM-230K, BSM-2351A, BSM-4100, BSM-4102, BSM-4102A, BSM-5100 Life Scope A, BSM-6000 series, BSM-6301K, BSM-6501K, BSM-6701K, BSM-9101, BSM-9500 Life Scope S, BSM |
Questions & answers
Can I plug a 5-lead set into a 3-lead trunk?
Only if the trunk socket supports it — configurations are keyed by platform. Tell us the monitor and trunk reference and we confirm the set.
Which colour convention should I order?
The one your department already uses. AHA and IEC are both stocked; mixing conventions in one unit is the error to avoid.
How long do leadwire sets last?
They are consumable assemblies: life depends on handling and cleaning. Replace a set when any lead becomes intermittent under a gentle flex test.
