Disposable ECG electrodes and the pre-wired variants
LinesECG · EEG · EMG
FormatsSnap · pre-wired · cup
UseSingle-patient
Companion rangeLeadwire sets
Electrodes are the cheapest part of the monitoring chain and the first suspect in most artefact investigations. This range covers disposable adhesive ECG electrodes for monitoring, pre-wired electrode sets that remove the snap connection entirely, and the EEG/EMG electrode family — gold cup electrodes, pre-gelled and needle types — that shares the same shelf in most neurophysiology and sleep departments.
Medlinket holds a Chinese utility patent (CN202120112524.5) on a non-woven monitoring electrode design, and the electrode line is a natural bundle with the leadwire range: the same order can carry the sets and the electrodes they terminate in, colour-coded and connector-matched, instead of two suppliers with two keying conventions.
Choosing an electrode format
Snap electrodes are the default for general monitoring: a solid-gel Ag/AgCl element on a foam or non-woven backing, connected by the leadwire's snap. Pre-wired sets integrate the electrode and lead, which removes a failure point and suits high-turnover areas such as emergency and transport. For longer monitoring, backing material and adhesive choice matter more than the element: skin condition, expected wear time and department protocol should drive the choice, and samples are the reliable way to settle it.
- Adhesive monitoring electrodes — adult sizes, 4.0 mm snap compatible

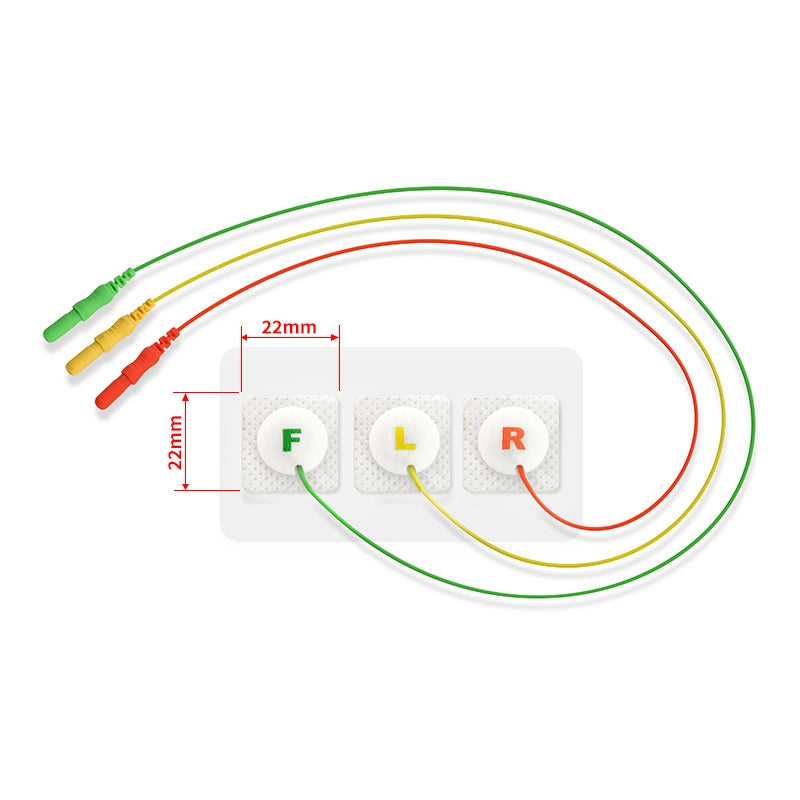

- Pre-wired electrode sets — 1.5 mm DIN safety plug variants in the catalogue
- EEG cup electrodes — gold-plated, 1.5 m leads (see EEG sensors)
Stocking notes for distributors
Electrodes are date-sensitive stock: gel dries and adhesive ages, so rotation discipline matters more than depth. Order quantities and shelf-life terms are confirmed in the quotation; pairing electrode supply with the matching leadwire sets in one shipment reduces the connector mismatches that generate returns.
Representative products from the current catalogue
| Product (official store listing) | Key specifications |
|---|---|
| 2mm banana plug,Male | Category: ECG Accessories；Material: H62；Packaging Unit: bag；Weight: 0.015 lb/Bag；Connector Type: 2mm Banana Plug；Diameter: 2.0*20 mm；Latex-free: Yes；Warranty: 6 months since the date of purchase；Compliance: ANSI /AAMI EC53:2013, ISO10993-1, |
| 4.0mm copper tube for 4.0 mm Banana Plug | Category: ECG Accessories；Material: H62；Packaging Unit: bag；Weight: 0.015 lb/Bag；Connector Type: 4.0mm copper tube；Diameter: 4.0*28 mm；Latex-free: Yes；Warranty: 6 months since the date of purchase；Compliance: ANSI /AAMI EC53:2013, ISO10993- |
| 4mm banana plug with a red head for ECG/EKG cable | Category: ECG Accessories；Material: H62；Packaging Unit: bag；Weight: 0.025 lb/Bag；Connector Type: 4mm Banana Plug；Diameter: 137*30.5 mm；Latex-free: Yes；Warranty: 6 months since the date of purchase；Compliance: ANSI /AAMI EC53:2013, ISO10993- |
| Alligator Clips with 2mm Banana Socket Insulation Metal-White | Category: ECG Accessories；Body material: Brass；Available Color: White；Insulating resistance: ≥500MΩ；Packaging Unit: bag；Weight: 0.025 lb/Bag；Diameter: 2.0*41.5 mm；Connector Type: 2mm Banana Socket；Surface coating: Nickel plated；Insulation m |
| disposable ecg electrodes for Adult,Adhesive ,4.0mm Snap ecg electrode | 3M: 134471, 2238, 2268-3, 2268-5；Philips: 989803137771；ALL Patient Monitor: for ECG diagnosis, ECG monitoring, ECG workstation, Telemetry (Holter) ECG；Category: ECG；Material: Non-woven Fabric；Packaging Type: Bag；Packaging Unit: 50 pcs/Bag 1 |
| Disposable EEG Cup Electrodes with 1.5 DIN Plug-80in | Clinical Applications: Sleep Study，PSG（Polysomnography） Monitoring Routine EEG，Long-term Monitoring (LTM)；Natus Medical Grass®: F-E5GH-48 Gold；Compatible Brand: Compatible Models；Cadwell: Easy III, Easy II/IV, Easy Ambulatory；Natus Medical: |
Questions & answers
Are the electrodes single-use?
Yes — adhesive monitoring electrodes are single-patient devices. Replace per department protocol or when adhesion/signal degrades.
Do the electrodes fit standard snap leadwires?
The monitoring electrodes use the common 4.0 mm snap interface; pre-wired variants terminate in 1.5 mm DIN safety plugs. Confirm your leadwire end when ordering.
Can electrodes and leadwires ship together?
Yes — electrodes, leadwire sets and trunk cables are stocked in the same catalogue and can be consolidated in one order.
See also: Disposable electrodes in detail · EEG sensors · ECG cables
